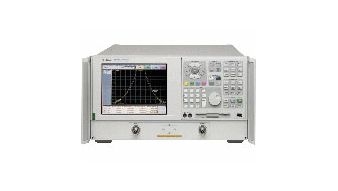

E8803A RF vector network analyzer 300kHz-9Ghz
Our full capability repair service facility can repair and calibrate your Agilent Keysight HP E8803A Network Analyzer. We specialize in obsolete, unsupported, Agilent Keysight HP Test equipment.
The Agilent E8803A network analyzer is an instrument which measures the complex transmission and reflection characteristics of two-port devices in the frequency domain. It does this by sampling the incident signal, separating the transmitted and reflected waves, and then performing ratios that are directly related to the reflection and transmission coefficients of the two-port. Frequency is swept to rapidly obtain amplitude and phase information over a band of frequencies of interest.
Agilent E8803A network analyzers utilize synthesized-frequency sources to provide a known test stimulus that can sweep across a range of frequencies or power levels. Agilent E8803A network analyzers also can perform ratioed measurements (including phase), which require multiple receivers. The Agilent E8803A can provide a wealth of knowledge about a device under test (DUT), including its magnitude, phase, and group-delay response.
