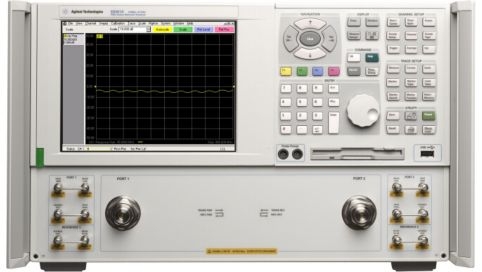

E8361A PNA Network Analyzer 10 MHz to 67 GHz
Our full repair facility can repair and calibrate your Keysight Agilent HP E8361A Network Analyzer. Free Repair Estimates. Analyzers are our business. We specialize in servicing obsolete, unsupported, Keysight HP Test Equipment. Keysight E8361A Network Analyzer Repair and Calibration Service.
10 MHz to 67 GHz, 2-ports with one source and 4-ports with two sources, source and receiver attenuators, bias-tees, pulse generators and modulators, noise figure, and best RF performance.
94 dB of dynamic range and <0.006 dB trace noise.(Specified to 67 GHz, with operation to 70 GHz) <26 usec/point measurement speed, 32 channels, 16,001 points TRL/LRM calibration, on-wafer, in-fixture, waveguide, and antenna measurements Mixer conversion loss, return loss, isolation, and absolute group delay Amplifier gain compression, harmonic, IMD, and pulsed-RF
Time domain for 6 GHz model N52310-010 Time domain for 13.5, 20, 40 or 50 GHz model N52300-010 Frequency-offset measurements N52300-080 Scalar-calibrated converter measurements (Option 080 required) N52300-082 4-port measurement application N52300-550 N-port capabilities for 6, 13.5 or 20 GHz model N52310-551 N-port capabilities for 40 or 50 GHz model N52300-551
