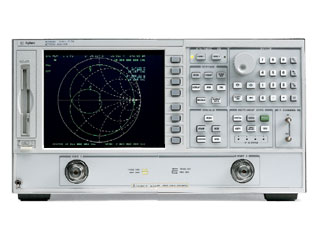

Our full repair facility can repair and calibrate your Keysight Agilent HP 8722D Network Analyzer. Free Evaluations on the Keysight Agilent HP 8722D..

We are specialists in the repair of the Agilent/HP 8722D Network Analyzers. With over 40 years in Metrology, we can service your Agilent HP 8722D vector network analyzer.

Frequency Range: 50 MHz to 40 GHz. Frequency Resolution: 1 Hz. Frequency Accuracy: 10 ppm. Maximum Source Power: -5 dBm, < 20 GHz; -10 dBm, 20 to 40 GHz (std), 0 dBm, < 20 GHz; -5 dBm, 20 to 40 GHz (Option 007). Minimum Source Power: -75 dBm (std), -70 dBm (Option 007). Power Resolution: 0.01 dB. Power Flatness: ± 2 dB. Power Sweep Range: 15 dB. System Dynamic Range (>2 GHz): 82 to 93 dB, 86 to 98 dB (Option 007). Test Port Connector 2.4 mm.

Options: 007, Mechanical Transfer Switch. 010, Time Domain Capability. 012, Direct Sampler Access. 085, High-Power Test Set. 089, Frequency Offset Mode. 1D5, High-Stability Frequency Reference. 400, Four-Sampler Test Set.
